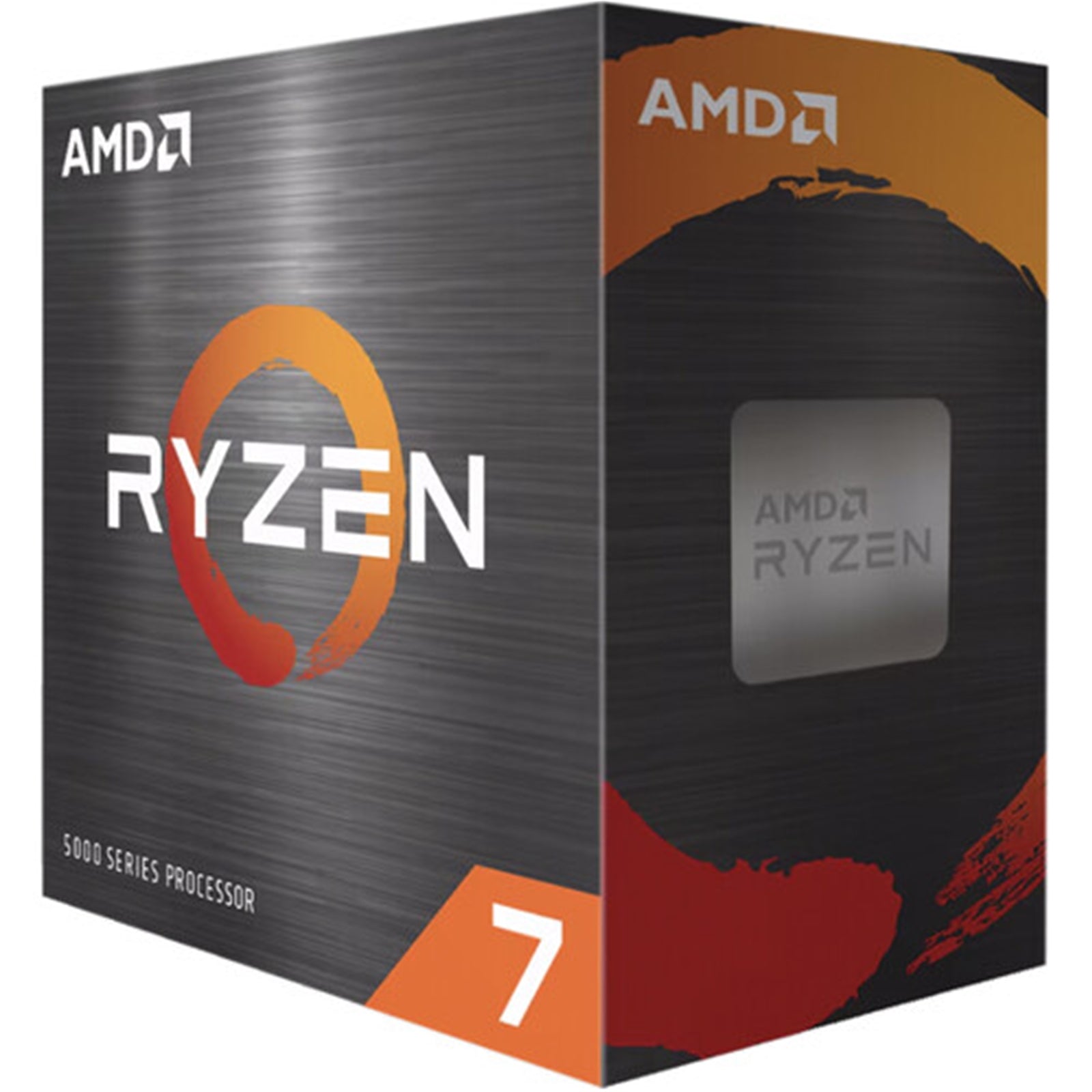

AMD Ryzen 7 5800XT, 8 Core AM4 Processor, 16 Threads, 3.8Ghz up to 4.8Ghz Turbo, 32MB Cache, 105W

AMD Ryzen 7 5800XT 3.8 GHz Eight-Core AM4 Processor

Key Features
8 Cores & 16 Threads
3.8 GHz Base Clock
4.8 GHz Max Boost Clock
Socket AM4
4MB L2 & 32MB L3 Cache
DDR4-3200 Memory
Unlocked Processor
Includes Wraith Prism Cooler
Supports PCIe 4.0 x16
Zen 3 Architecture

Power up your computing experience with the AMD Ryzen 7 5800XT 3.8 GHz Eight-Core AM4 Processor, which features eight cores and 16 threads to help quickly load and multitask demanding applications.

Designed for socket AM4 motherboards using the powerful Zen 3 architecture, the 7nm 5th generation Ryzen processor offers significantly improved performance compared to its predecessor. With a base clock speed of 3.8 GHz and a max boost clock speed of 4.8 GHz in addition to 32MB of L3 Cache, the Ryzen 7 5800XT is built to deliver the power needed to smoothly handle tasks ranging from content creation to immersive gaming experiences. You can boost performance further by overclocking this unlocked processor. Other features include support for PCIe Gen 4 technology and 3200 MHz DDR4 RAM with compatible motherboards.

This processor has a 105W TDP (Thermal Design Power) and a Wraith Prism cooler. Please note that it does not have an integrated GPU, so a dedicated graphics card is required.

Precision Boost 2
AMD Ryzen processors monitor the system's energy consumption, temperatures, and other factors to automatically raise clock speeds, allowing applications to perform faster.

Precision Boost Overdrive
Precision Boost Overdrive technology takes advantage of your compatible motherboard's design to boost clock speeds higher and for longer periods of time. It also allows you overclock the processor at the touch of a button.

AMD StoreMI Technology
AMD StoreMI technology helps to improve load times and overall system performance by combining solid-state drives and mechanical hard drives into a single hybrid storage drive. Frequently used files and programs are cached onto the fast SSD while other files are stored on the high-capacity HDD.

AMD Ryzen VR Ready Premium
Ryzen VR Ready Premium processors are designed to meet or exceed the recommended specifications from the top HMD manufacturers, including Oculus Rift, HTC Vive, and Windows Mixed Reality for smooth performance.

AMD Ryzen Master Utility
Personalized Performance
The AMD Ryzen Master Utility provides you with multiple custom profiles to store CPU, GPU, and DDR4 memory configurations. Use it to configure performance parameters for the active cores and adjust memory times. You can also optimize general performance or fine-tune your favorite applications.

System Monitoring
Monitor your system in real-time using the AMD Ryzen Master Utility, which features a histogram of per-core clock rates and temperature, including average and peak readings.

Specifications

General

CPU Model
AMD Ryzen 7 5800XT

CPU Socket
AM4

Manufacturing Process
7 nm

Maximum Number of PCIe Lanes
24 (Revision 4.0)

Unlocked
Yes

Performance

Number of Cores
8

Number of Threads
16

Base Clock Speed
3.8 GHz

Maximum Boost Speed
4.8 GHz

L3 Cache
32 MB

Memory Support

Memory Support
DDR4 Up to 3200 MHz

ECC Memory
No

Channel Architecture
Dual Channel

Power

Thermal Design Power (TDP, Max)
105 W

Included Thermal Solution
Wraith Prism

Maximum Temperature
194°F / 90°C

Thermal Monitoring Technologies
Yes

Technology

Performance Technologies
Precision Boost 2

Warranty
Limited 3-Year Manufacturer Warranty

• Socket: AM4
• On-Chip Graphics: No
• Speed: 3.8GHz
• Core Quantity: 8
• Prefix: Ryzen 7
