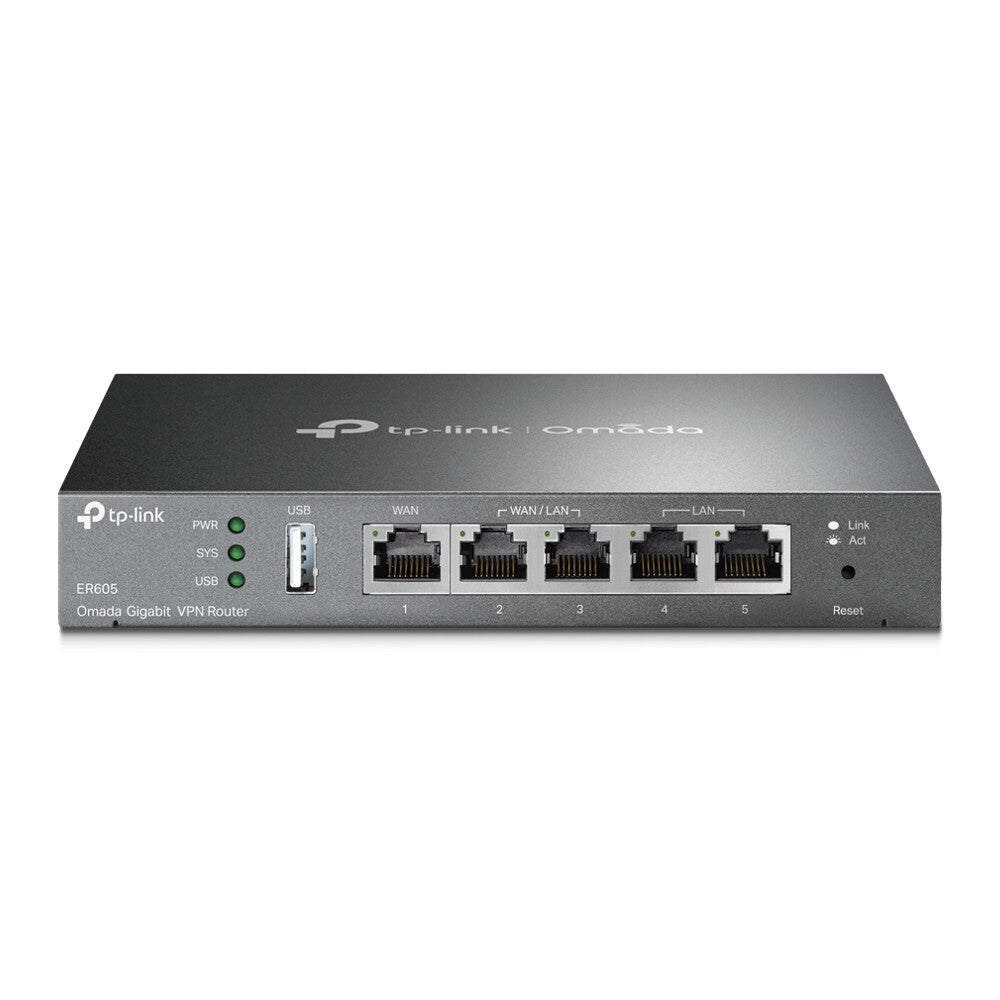

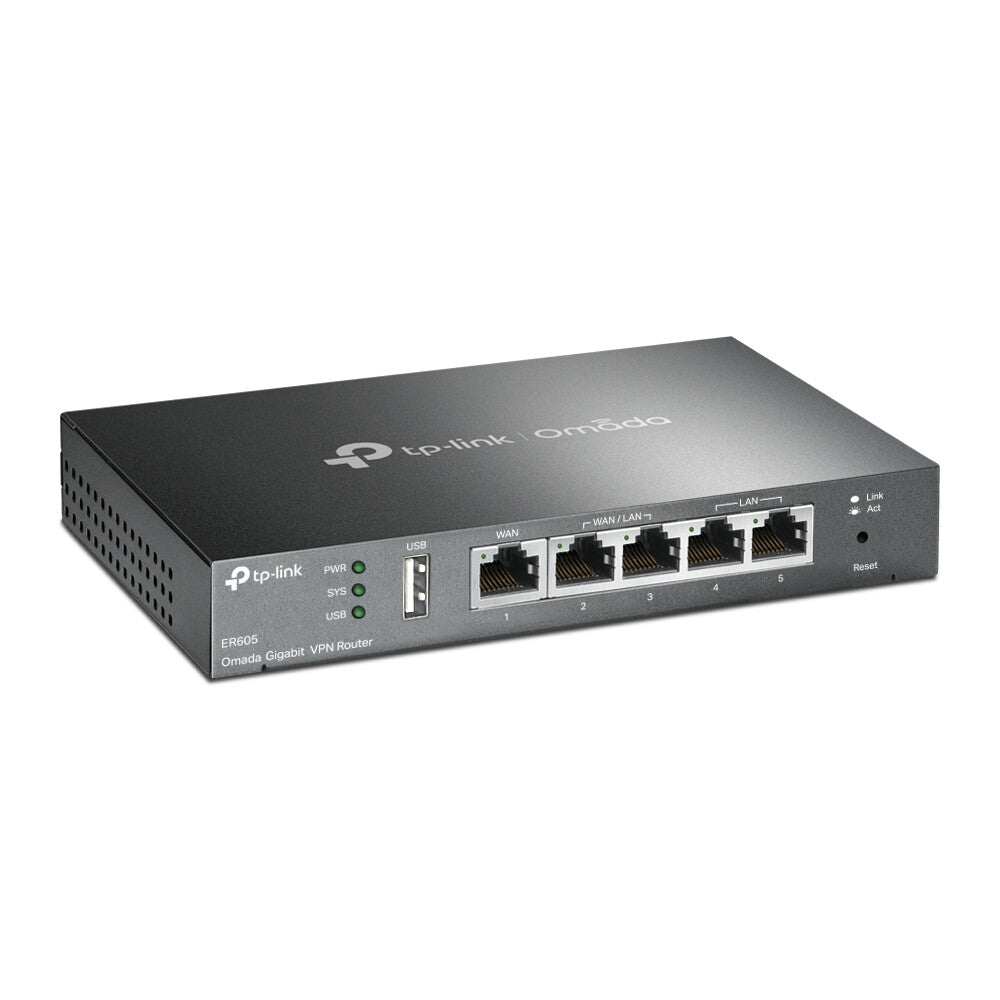

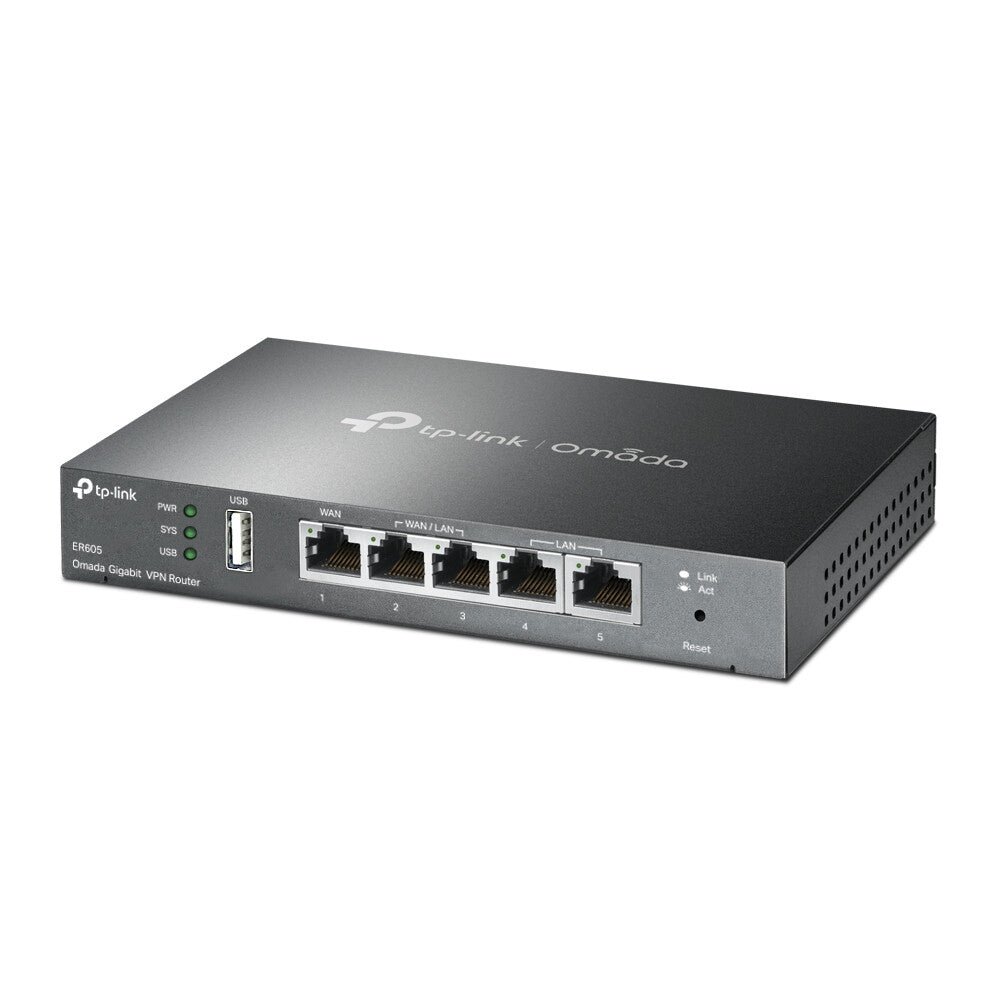

TP-Link Omada Gigabit VPN Router
Key Details:
- Integrated into Omada SDN: Zero-Touch Provisioning***, Centralized Cloud Management, and Intelligent Monitoring
- Centralized Management: Cloud access and Omada app for convenience and easy management
- Five Gigabit Ports: High-speed wired connectivity
- Up to 3 WAN Ethernet Ports: 1 gigabit WAN port and 2 gigabit WAN/LAN ports with load balance raise the utilization rate of multi-line broadband
- One USB WAN Port for Mobile Broadband: Mobile broadband via 4G/3G modem is supported for WAN backup by connecting to the USB port.‡
- Highly Secure VPN: Supports up to 20× LAN-to-LAN IPsec, 16× OpenVPN*, 16× L2TP, and 16× PPTP VPN connections
- Abundant Security Features: Advanced firewall policies, DoS defense, IP/MAC/URL filtering, and more security functions protect your network and data
Found a cheaper price online? Contact us so we can price match/beat.
TP-Link Omada Gigabit VPN Router
Omada Gigabit VPN Router
Professional, Secure, and Reliable Gigabit VPN Router

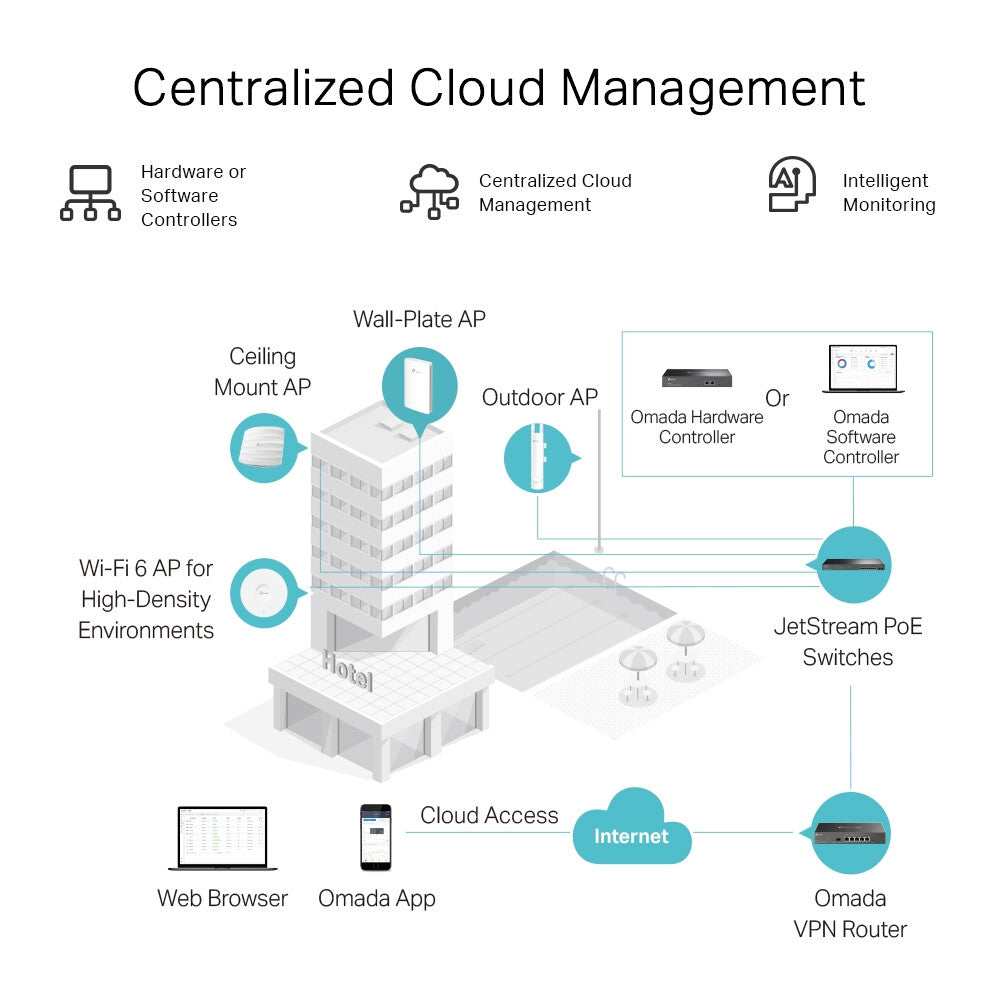

Omada SDN—The Smarter Cloud Solution for Business Networking
As the gateway that seamlessly integrates into the Omada Software Defined Networking (SDN) platform, ER605 allows for remote and centralized management, anywhere, anytime. Standalone management via the Web UI or app is also available to maximize convenience.

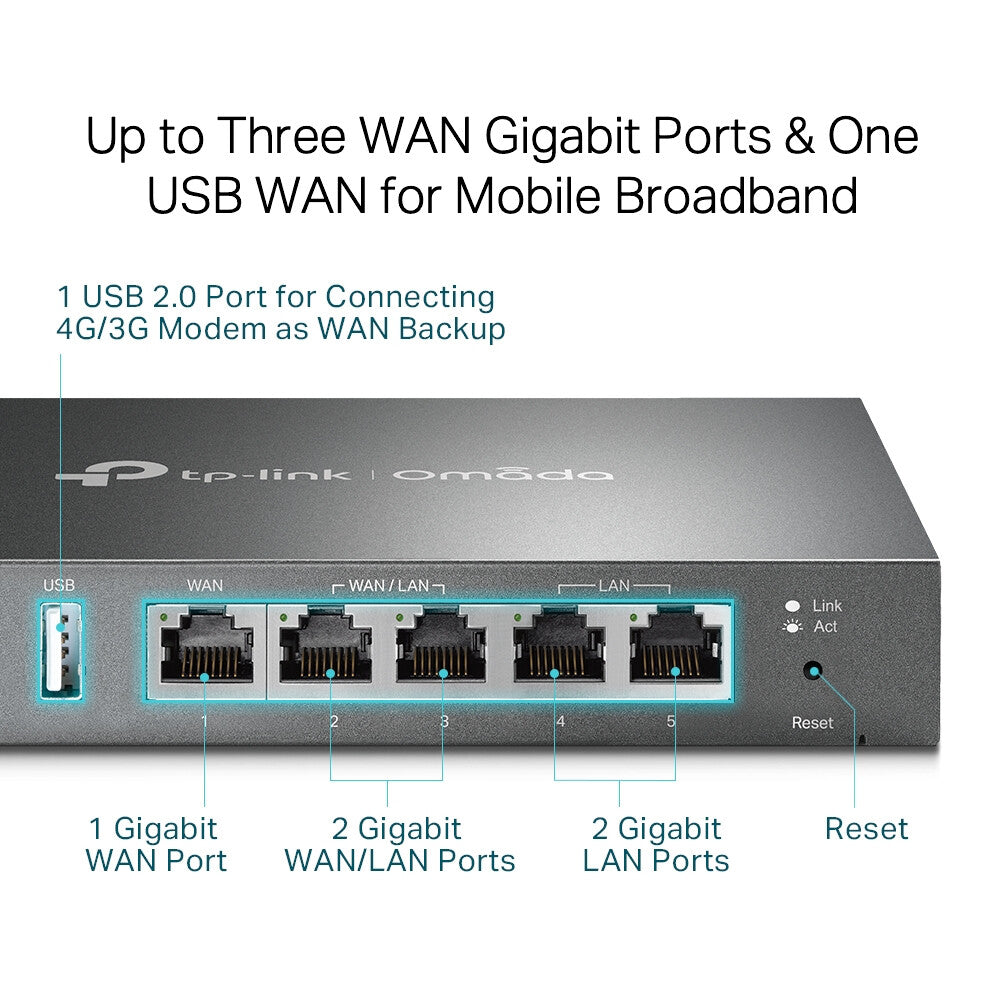

Up to Three WAN Gigabit Ports & One USB WAN for Mobile Broadband
Two freely interchangeable ports allow the router to support up to three WAN ports for various Internet access requirements. The multi-WAN Load Balancing function distributes data streams according to the bandwidth proportion of every WAN port to raise the utilization rate of multi-line broadband.
Mobile broadband via 4G/3G modem by connecting to the USB port is also supported for WAN backup.

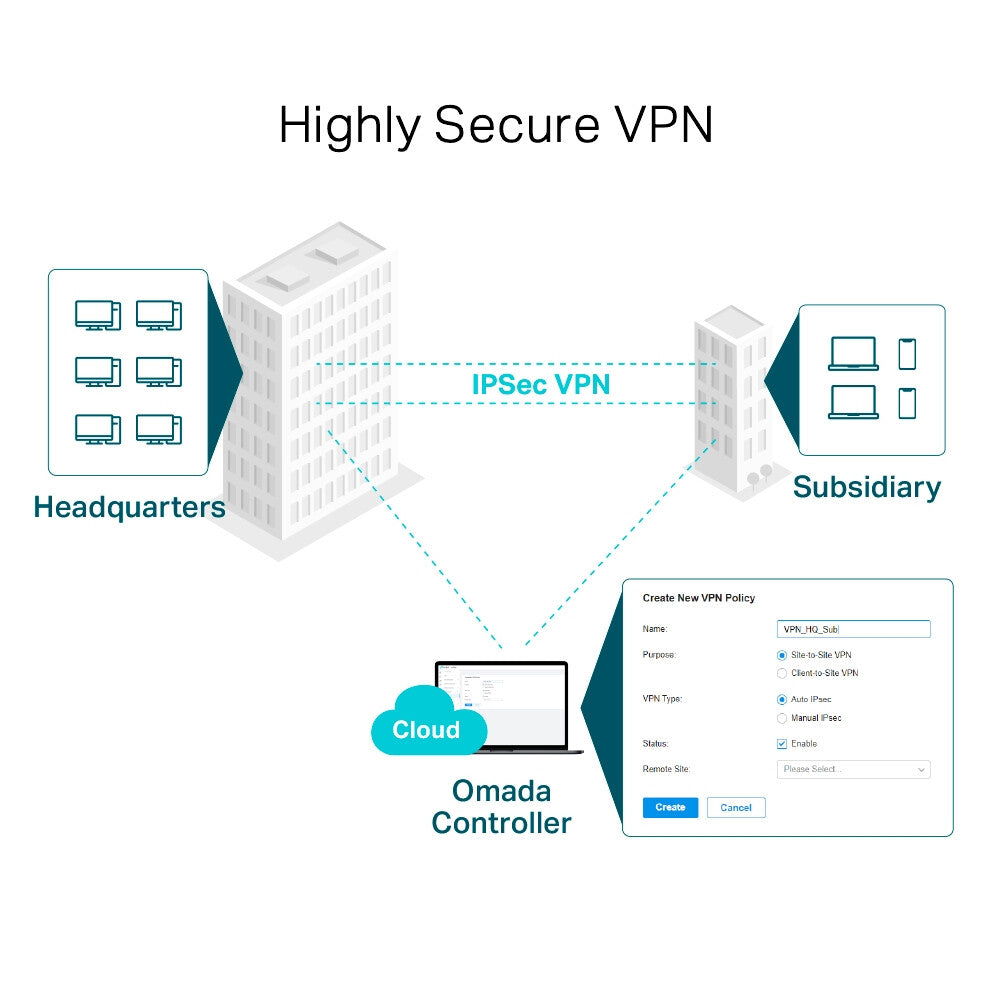

High-Security and High-Performance VPN
ER605 supports IPSec/PPTP/L2TP VPN over IPSec/SSL protocols. One-click auto IPSec VPN* greatly simplifies VPN configuration and facilitates network management and deployment. It also secures and encrypts private site-to-site data communications traveling over the internet. This version improves VPN performance by 4–5 times thanks to the open line of communication with Omada's user base.

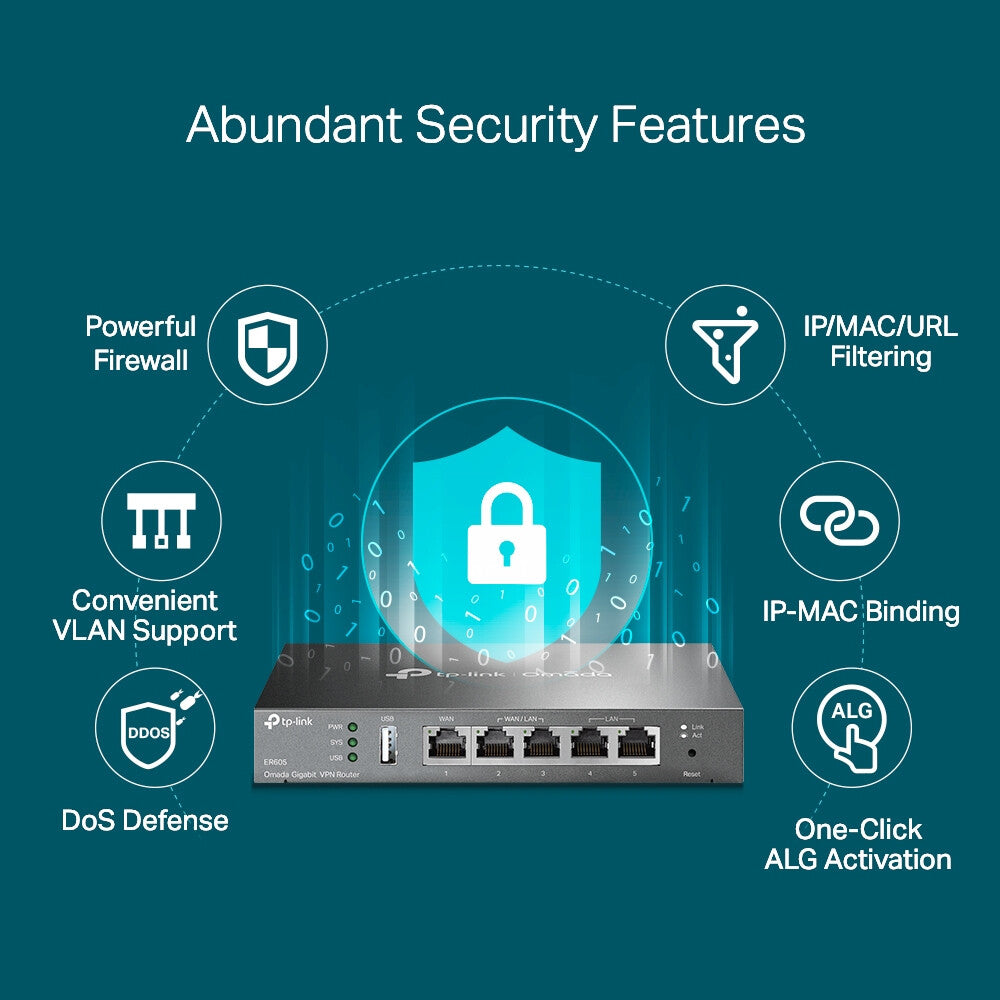

Abundant Security Features
Powerful Firewall
Advanced firewall policies protect your network and data.
Convenient VLAN Support
Create virtual network segments for enhanced security and simplified network management.
DoS Defense
Automatically detects and blocks Denial of Service (DoS) attacks such as TCP/UDP/ICMP Flooding, Ping of Death, and other related threats.
IP/MAC/URL Filtering
Forcefully prevent viruses and attacks from intruders.
IP-MAC Binding
Reserves static IP assignment for clients to defend against ARP attacks and spoofing.
One-Click ALG Activation
One-Click ALG Activation for applications such as FTP, H323, SIP, IPSec and PPTP.
Internet Access Management Strategy
Administrators can moderate users' online behavior and easily specify employees' internet access rights and strategies via IP/MAC/URL Filtering and Access Control List (ACL). Captive Portal authentication facilitates network resource control by capturing, authenticating, and classifying user access. Appropriate network resources can also be allocated for particular users or guests.
Easy Management with the Omada App
Follow configuration instructions on the free Omada app to get set up in minutes. Omada lets you configure settings, monitor the network status, and manage clients, all from the convenience of a mobile device.
| WAN connection | |
|---|---|
| 3G/4G USB modem compatibility | No |
| SIM card slot | No |
| DSL WAN | No |
| Ethernet WAN | Yes |
| Network | |
|---|---|
| Concurrent connections | 150000 |
| Policy-based routing | Yes |
| Traffic control | Yes |
| VLAN support | Yes |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Cabling technology | 10/100/1000Base-T(X) |
| Ethernet interface type | Gigabit Ethernet |
| Networking standards | IEEE 802.1Q, IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x |
| Management features | |
|---|---|
| Reset button | Yes |
| Universal Plug and Play (UPnP) | Yes |
| Web-based management | Yes |
| Ports & interfaces | |
|---|---|
| USB ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 5 |
| Protocols | |
|---|---|
| Supported protocols | IPsec/PPTP/L2TP |
| Supported network protocols | TCP/IP, DHCP, ICMP, NAT, PPPoE, SNTP, HTTP, DNS, IPsec, PPTP, L2TP |
| Management protocols | Telnet |
| Routing protocols | RIP-1, RIP-2 |
| DMZ support | Yes |
| DHCP client | Yes |
| DHCP server | Yes |
| Security | |
|---|---|
| NAT functionality | • One-to-One NAT• Multi-Net NAT• Virtual Server• Port Triggering• NAT-DMZ• FTP/H.323/SIP/IPSec/PPTP ALG, UPnP |
| VPN support | • 20 IPsec VPN Tunnels• LAN-to-LAN, Client-to-LAN• Main, Aggressive Negotiation Mode• DES, 3DES, AES128, AES192, AES256 Encryption Algorithm• IKEv1/v2• MD5, SHA1 Authentication Algorithm• NAT Traversal (NAT-T)• Dead Peer Detection (DPD)• Perfect Forward Secrecy (PFS)• PPTP VPN Server• 10 PPTP VPN Clients• 16 Tunnels• PPTP with MPPE Encryption• L2TP VPN Server• 10 L2TP VPN Clients• 16 Tunnels• L2TP over IPSec• OpenVPN Server• 10 OpenVPN Clients• 16 OpenVPN Tunnels |
| VPN tunnels quantity | 20 |
| System event log | Yes |
| Network address translation (NAT) | Yes |
| ARP attack prevention | Yes |
| DoS attack prevention | Yes |
| URL filtering | Yes |
| Authentication method | SHA-1, MD5 |
| Firewall | Yes |
| Security algorithms | 3DES, 128-bit AES, 192-bit AES, 256-bit AES, DES, MD5, SHA-1 |
| General | |
|---|---|
| Product family | Omada |
| Technical details | |
|---|---|
| Sustainability certificates | RoHS |
| Features | |
|---|---|
| Certification | CE, FCC, RoHS |
| Linux operating systems supported | Yes |
| Mac operating systems supported | MacOS |
| Windows operating systems supported | Windows 10, Windows 2000, Windows 7, Windows 8, Windows 8.1, Windows 98SE, Windows NT, Windows Vista, Windows XP |
| Internal memory type | DRAM |
| Internal memory | 256 MB |
| Flash memory | 128 MB |
| Design | |
|---|---|
| LED indicators | Activity, LAN, System, USB, WAN |
| Rack capacity | 1U |
| Rack mounting | Yes |
| Product colour | Black |
| Power | |
|---|---|
| AC input frequency | 50 - 60 Hz |
| AC input voltage | 120 - 240 V |
| Power source type | AC |
| Power consumption (typical) | 7.94 W |
| Operational conditions | |
|---|---|
| Storage relative humidity (H-H) | 5 - 90% |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating temperature (T-T) | 0 - 40 °C |
| Weight & dimensions | |
|---|---|
| Height | 25 mm |
| Depth | 101 mm |
| Width | 158 mm |
| Packaging data | |
|---|---|
| Package weight | 650 g |
| Package height | 60 mm |
| Package depth | 254 mm |
| Package width | 190 mm |
| Quick installation guide | Yes |
| Quick start guide | Yes |
| Manual | Yes |
| Cables included | AC |
